Placer gold centrifuge plans

With gold over $1000/oz., it's time to stake your claim and build this gas engine powered portable gold centifuge to sort and recover placer gold deposits. Tell your boss to take the job and shove it, and make money turning dirt into dollars going gold prospecting in the fresh air. The trailer mounted mobile placer plant built using these plans uses uses water and centrifugation to separate gold particles from aggregates. The benefit and advantage of using "do it yourself" components is that you can maintain the equipment in the wilderness without having to drive to a hardware store or order spare parts from an equipment manufacturer.

This vertical gold separator was originally designed around a windfall gift of a huge piece of clear Lexan tubing. Aggregates are fed into the top of the machine through a hopper. A flood of water through a spray bar follows the material into the spinning perimeter of the vertical trommel(a screened cylinder used to separate material by size). It’s not really a true trommel, but larger material finds its way to the discharge chute by way of gravity and water flow, but smaller material is allowed to enter a series of various collectors. Lighter stuff is continually washed away however and the heavier placer is retained on the inside wall of the centrifuge.

In the original gold spinner that inspired these plans, the clear tubing actually allowed me to see gold flakes collecting on the sides. This portable placer mining plant does not use plastic, but the operation is the same and a nugget drop is located in the discharge chute. This placer centrifuge is ideal for use with a dredge.

This trailer mounted gold prospecting machine was drawn using computer aided design and is highly detailed in inches. Easy to read drawings leave nothing to chance and it uses cheap, off-the-shelf components. Be sure to check out our other gold mining equipment plans too.


placer gold centrifuge

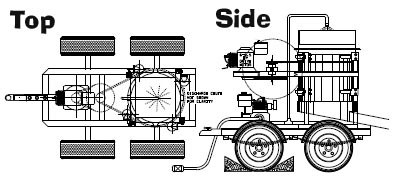

This detailed set of cad assembly drawings for building a portable placer gold centrifuge is printed in black and white on roll paper and includes 9 pages printed on (1) 36" x 48" sheet and (2) 24" x 36" sheets.

IMPORTANT NOTE: Our plans are designed to be simple enough to be understood by the do-it-yourselfer but are NOT "step-by-step" instructions. Actual construction of items using these plans may require specialized engineering knowledge, tools and building/manufacturing/fabrication expertise. Although we appreciate feedback to improve our designs, we do NOT provide engineering advice or consultation services. By ordering these plans, you are agreeing to our DISCLAIMER and TERMS AND CONDITIONS. Please ASK ALL QUESTIONS prior to ordering plans because like computer software, PLANS ARE NONRETURNABLE AND NONREFUNDABLE.

Download these plans now for just $5

You can download these plans to view on your computer monitor and zoom in/out to view details but for printing, YOU MUST HAVE A 36" WIDE PLOTTER TO PRINT READABLE PLANS. Below are scaled down versions of the actual plans you get:


gold centrifuge plans


gold prospecting spinner plans


how to build a placer mining separator


PROCEDURE: After checking out you will be given a link where you can download your plans right away. If you have trouble with getting the download, please CLICK HERE to contact us.
