Gold trommel plans

Thar's gold in them thar hills, and all you need is water and a machine to separate the gold from the hill! These plans are for building a trailer mounted and gas engine powered gold ore trommel to do just that.

The trommel is powered by a 5-8 Hp horizontal engine. The process water pump is powered by a 5 Hp horizontal engine, direct or belt drive. The welded chassis triples as a water manifold and spark free exhaust system which makes this a very quiet machine. Process is through a generous top loading hopper (4 cu.yds/hr. est.) fully flooded with process water to prevent clogging and into a cylindrical trommel which separates ore by mechanical rotation (45 RPM) and high pressure water through a spray bar.

The trailer is 2 or 4 wheel (both designs included) and makes-up with off-the-shelf components. Ore is sized as it tumbles full length through the trommel and falls through a grizzly onto a powered riffle (about 2000 cycles per minute) where the placer is captured. The riffle is emptied periodically into a large bucket and traditionally panned. Various materials may be used, astro-turf, pile carpet and molded rubber sheets of various articulations. Plans for a polyurethane riffle are included, a must for high efficiency recovery. The trommel is belt driven through a jack-shaft for the sake of simplicity and cost. The speed at mid-range is about 45 RPM. Even considering this moderate speed, a grizzly shield is necessary to keep water and ore restrained and directed into the riffle. The action of the powered riffle is adjustable to optimize the motion of various aggregates. This machine is designed to operate at a downward angle to optimize material flow. This is a simple, no frills machine capable of earning the average operator a living from various stream beds.

Placer gold (free gold) is available in every stream in California and other streams throughout the US as small nuggets, flakes (gold that has been hammered to thinner than paper thickness) and flour gold (very small particles that have to be centrifuged or collected with a mercury plate).

A note about DIAMONDS and GEMSTONES; this machine can be used to process either. Diamonds are processed worldwide taking advantage of a phenomenon that a diamond cannot be whetted. As a result, diamond bearing ore passing over a greased plate will stick and continue to embed deep into the plate as tailings wash across.

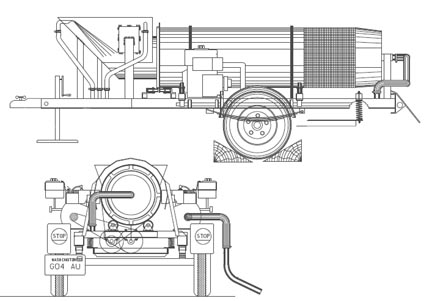

gold ore trommel



This detailed set of cad assembly drawings for building a portable gold trommel is printed in black and white on roll paper and includes 9 pages printed on (2) 36" x 48" sheets.

IMPORTANT NOTE: Our plans are designed to be simple enough to be understood by the do-it-yourselfer but are NOT "step-by-step" instructions. Actual construction of items using these plans may require specialized engineering knowledge, tools and building/manufacturing/fabrication expertise. Although we appreciate feedback to improve our designs, we do NOT provide engineering advice or consultation services. By ordering these plans, you are agreeing to our DISCLAIMER and TERMS AND CONDITIONS. Please ASK ALL QUESTIONS prior to ordering plans because like computer software, PLANS ARE NONRETURNABLE AND NONREFUNDABLE.

Download these plans now for just $5

You can download these plans to view on your computer monitor and zoom in/out to view details but for printing, YOU MUST HAVE A 36" WIDE PLOTTER TO PRINT READABLE PLANS. Below are scaled down versions of the actual plans you get:


gold trommel plans


gold saver plans


PROCEDURE: After checking out you will be given a link where you can download your plans right away. If you have trouble with getting the download, please CLICK HERE to contact us.

Click "Buy Now" button below to order plans by instant download.



IMPORTANT - READ BEFORE ORDERING

Click the "BUY NOW" button to order. A shopping bag will appear on the bottom right of your screen. You can checkout by clicking the shopping bag , or add other items then click the shopping bag when your order is complete. To delete items from shopping bag, click the shopping bag and then click the X in the upper right corner of item image you wish to delete

If you checkout using your credit card or Paypal through our regular procedure, be sure to input your EMAIL ADDRESS carefully as the payment receipt sent there immediately after placing your order will include a link to your download.











Order paper plans for only $20
Free shipping to USA and Canada

Printed on poster-size 36" wide roll paper.
Approximate shipping time from order placement to delivery: 1 week
In Stock - ships daily by USPS 1st class mail.

PROCEDURE:
We will send you an email receipt for your payment immediately following order placement. Upon shipment, we will send you an email with shipping information.

Click "Buy Now" button below to order paper plans by mail.










You can also order by mail or by phone:

CLICK HERE to order by mail

CLICK HERE to order by phone







IMPORTANT COPYRIGHT INFORMATION

Use of MyDIYPlans™ plans is subject to certain restrictions. By ordering our plans, you agree to the following:

All of MyDIYPlans™ plans are owned and copyrighted by the Do It Yourself Store, Rockwall, TX USA © 2009 ALL RIGHTS RESERVED.
These plans are only to be used by do-it-yourselfers to make a finished product for personal use or for resale at craft fairs or outlets. All resale finished products must include an attached design credit to MyDIYPlans™.

Unauthorized copying and redistribution of MyDIYPlans™ plans, or using the plans for anything else including commercial mass-production is a copyright infringement, as prohibited by the U.S. Copyright Act, 17 U.S.C. 101 et seq., and International copyright law and is in direct violation of the international rights of the copyright owner.
